Long wave pass Filter

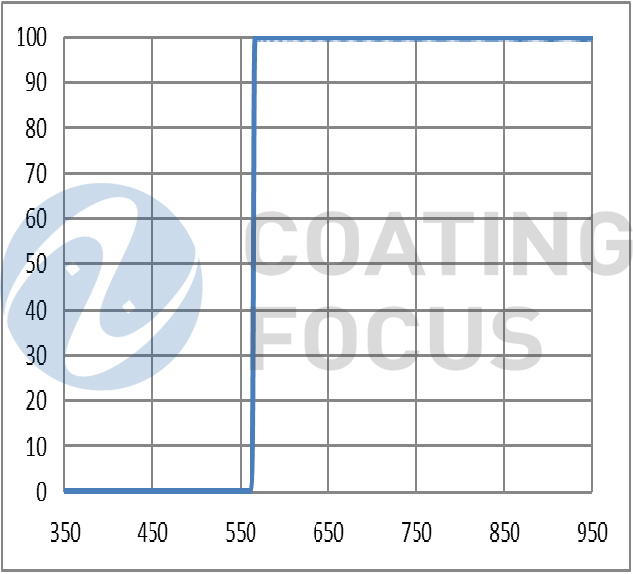

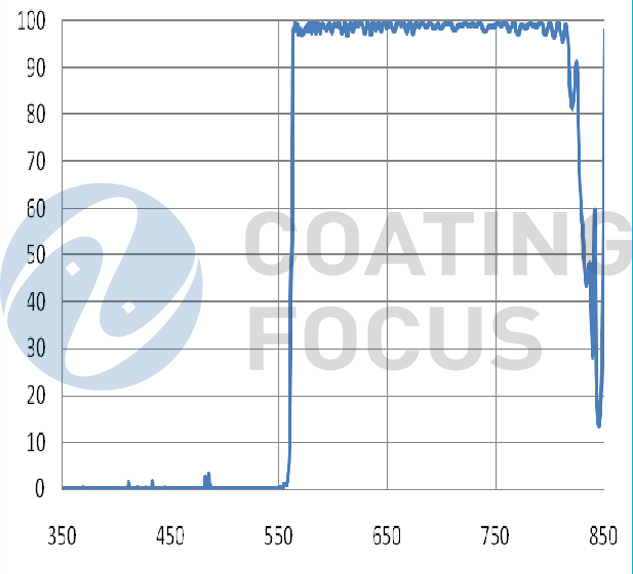

Parameters

Unit

Specifications

Angle of Incident

°

45

Passband

nm

564-800

Passband Average Transmission

%

>= 90%

Passband Absolute Transmission

%

>= 92%

Block Band <1%

nm

350~556

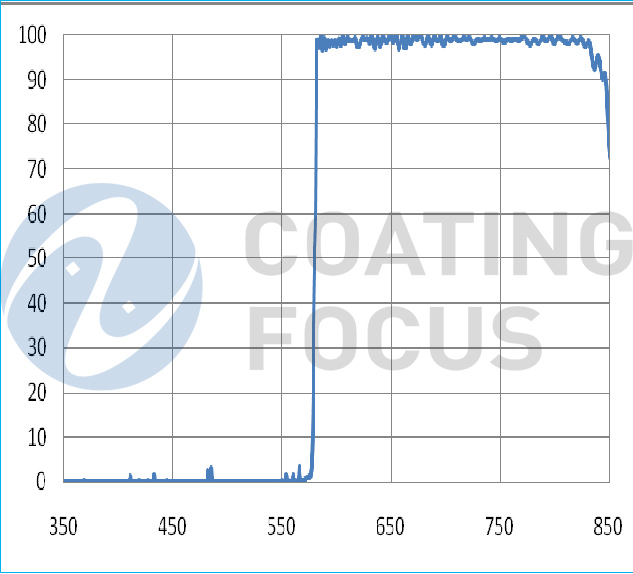

Parameters

Unit

Specifications

Angle of Incident

°

45

Passband

nm

586-800

Passband Average Transmission

%

>= 90%

Passband Absolute Transmission

%

>= 92%

Block Band <5%

nm

350~578

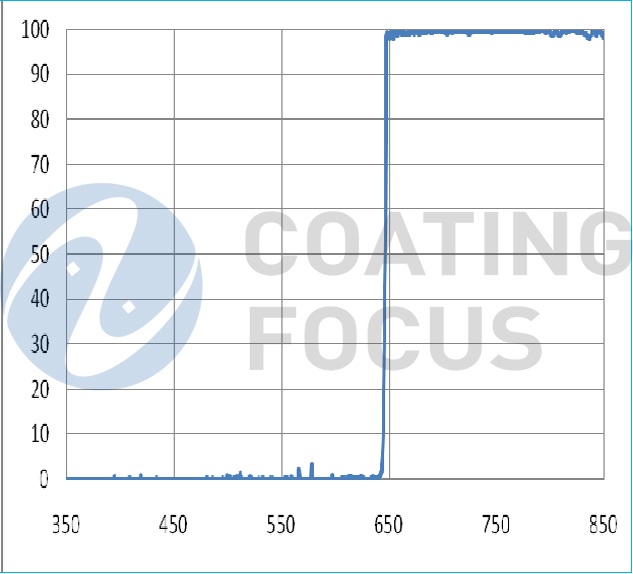

Parameters

Unit

Specifications

Angle of Incident

°

45

Passband

nm

648-850

Passband Average Transmission

%

>= 90%

Passband Absolute Transmission

%

>= 92%

Block Band <5%

nm

350~640

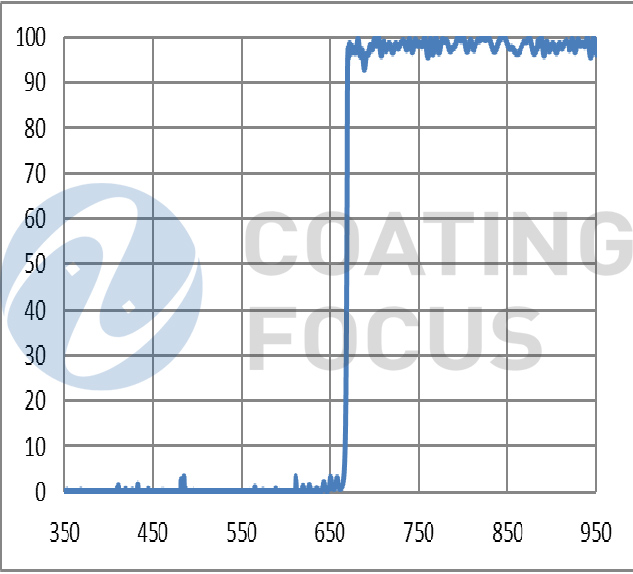

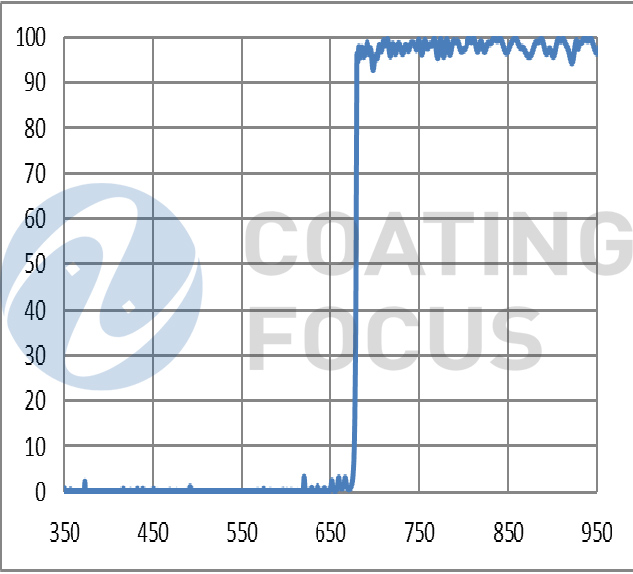

Parameters

Unit

Specifications

Angle of Incident

°

45

Passband

nm

671-950

Passband Average Transmission

%

>= 90%

Passband Absolute Transmission

%

>= 92%

Block Band <5%

nm

350~663

Parameters

Unit

Specifications

Angle of Incident

°

45

Passband

nm

680-950

Passband Average Transmission

%

>= 90%

Passband Absolute Transmission

%

>= 92%

Block Band <5%

nm

350~672

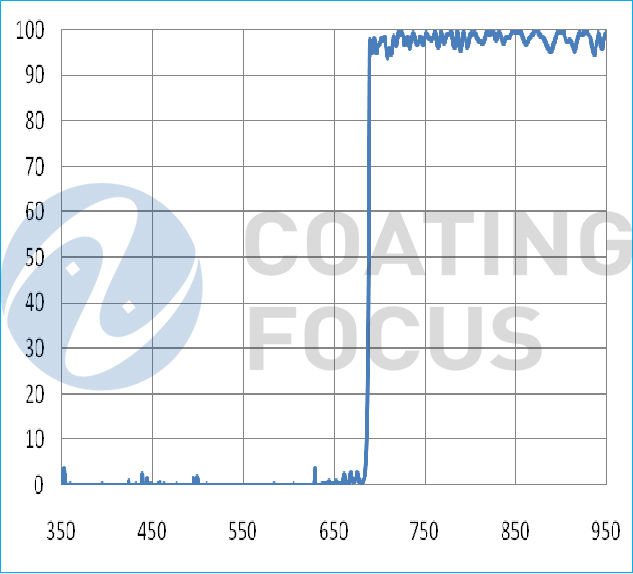

Parameters

Unit

Specifications

Angle of Incident

°

45

Passband

nm

689.5-950

Passband Average Transmission

%

>= 90%

Passband Absolute Transmission

%

>= 92%

Block Band <5%

nm

350~681.5

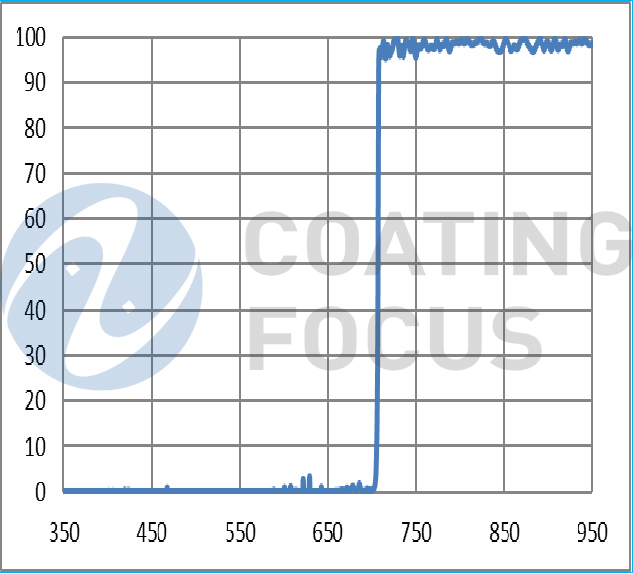

Parameters

Unit

Specifications

Angle of Incident

°

45

Passband

nm

708.5-950

Passband Average Transmission

%

>= 90%

Passband Absolute Transmission

%

>= 92%

Block Band <5%

nm

350~700.5

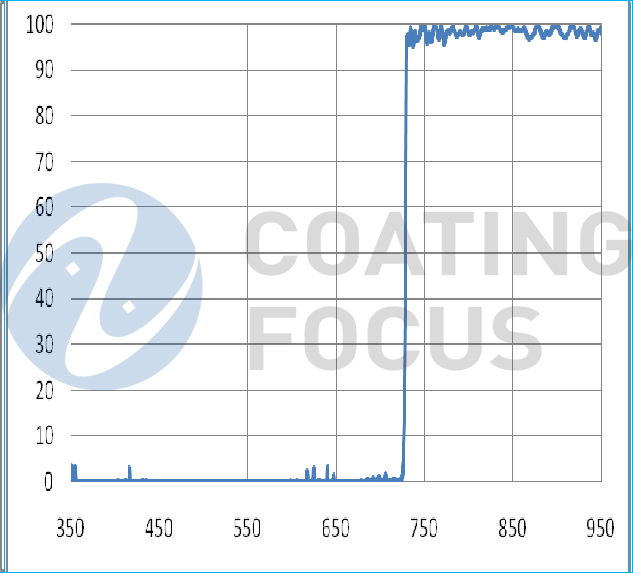

Parameters

Unit

Specifications

Angle of Incident

°

45

Passband

nm

730-950

Passband Average Transmission

%

>= 90%

Passband Absolute Transmission

%

>= 92%

Block Band <5%

nm

350~722

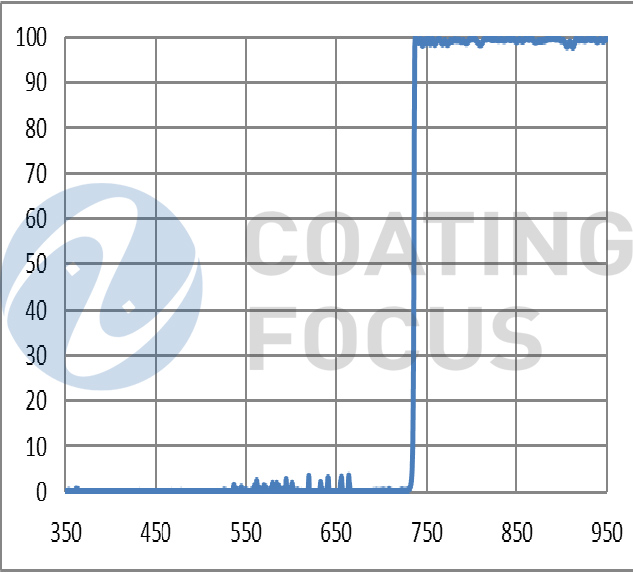

Parameters

Unit

Specifications

Angle of Incident

°

45

Passband

nm

737-950

Passband Average Transmission

%

>= 90%

Passband Absolute Transmission

%

>= 92%

Block Band <5%

nm

350~729

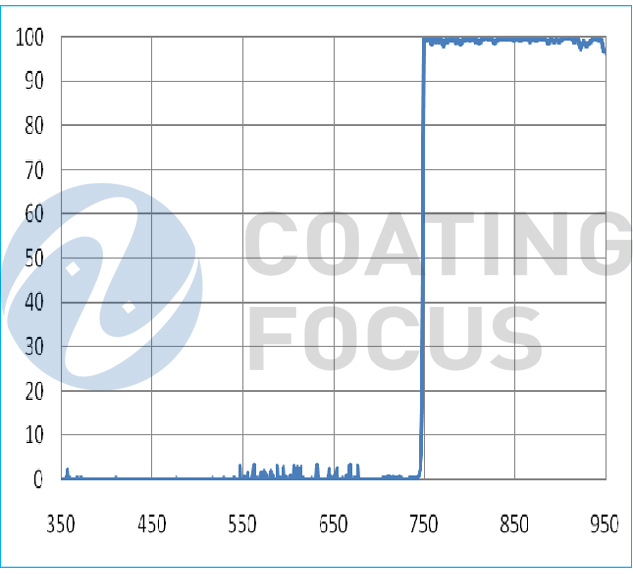

Parameters

Unit

Specifications

Angle of Incident

°

45

Passband

nm

750.5-950

Passband Average Transmission

%

>= 90%

Passband Absolute Transmission

%

>= 92%

Block Band <5%

nm

350~742.5

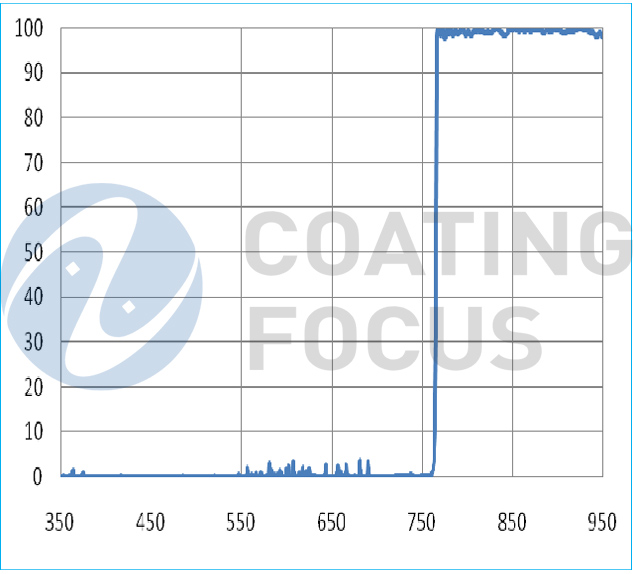

Parameters

Unit

Specifications

Angle of Incident

°

45

Passband

nm

767-950

Passband Average Transmission

%

>= 90%

Passband Absolute Transmission

%

>= 92%

Block Band <5%

nm

350~663

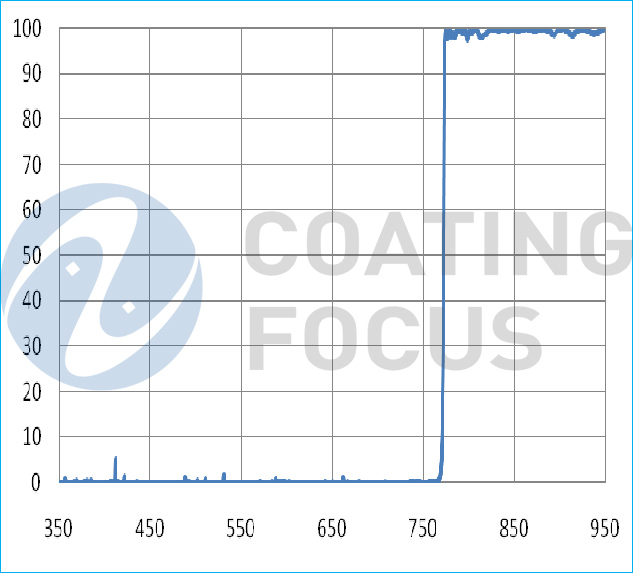

Parameters

Unit

Specifications

Angle of Incident

°

45

Passband

nm

774-950

Passband Average Transmission

%

>= 90%

Passband Absolute Transmission

%

>= 92%

Block Band <5%

nm

350~766

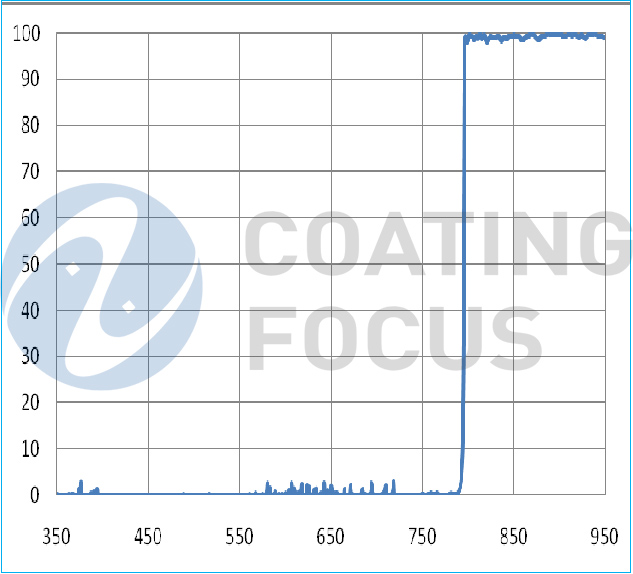

Parameters

Unit

Specifications

Angle of Incident

°

45

Passband

nm

797-950

Passband Average Transmission

%

>= 90%

Passband Absolute Transmission

%

>= 92%

Block Band <5%

nm

350~789

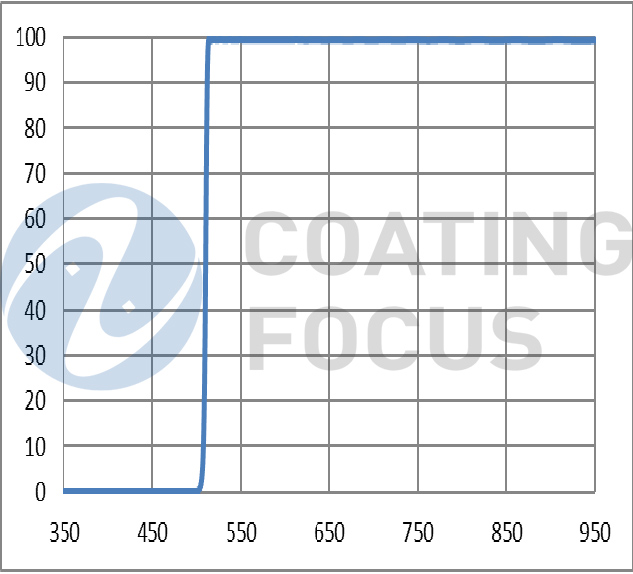

Parameters

Unit

Specifications

Angle of Incident

°

0

Passband

nm

520-950

Passband Average Transmission

%

>= 90%

Passband Absolute Transmission

%

>= 92%

Block Band OD > 4

nm

350~495

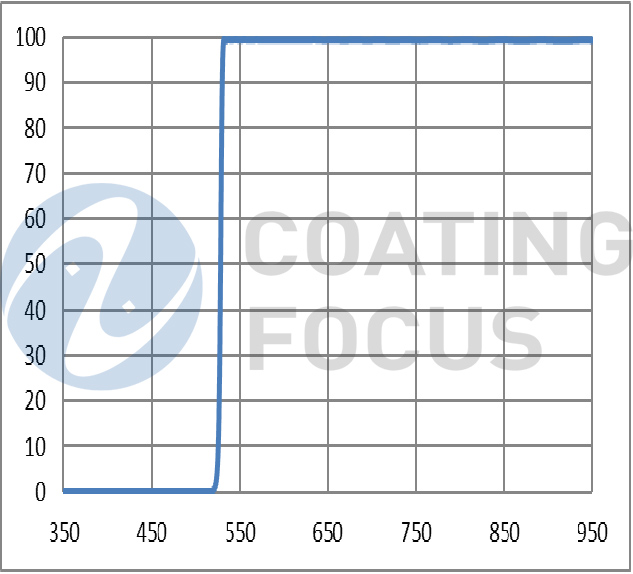

Parameters

Unit

Specifications

Angle of Incident

°

0

Passband

nm

538-950

Passband Average Transmission

%

>= 90%

Passband Absolute Transmission

%

>= 92%

Block Band OD > 4

nm

350~513

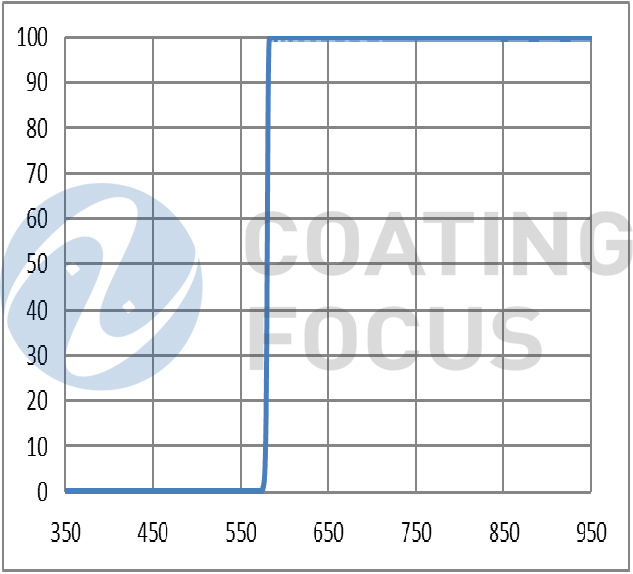

Parameters

Unit

Specifications

Angle of Incident

°

0

Passband

nm

575-950

Passband Average Transmission

%

>= 90%

Passband Absolute Transmission

%

>= 92%

Block Band OD > 4

nm

350~550

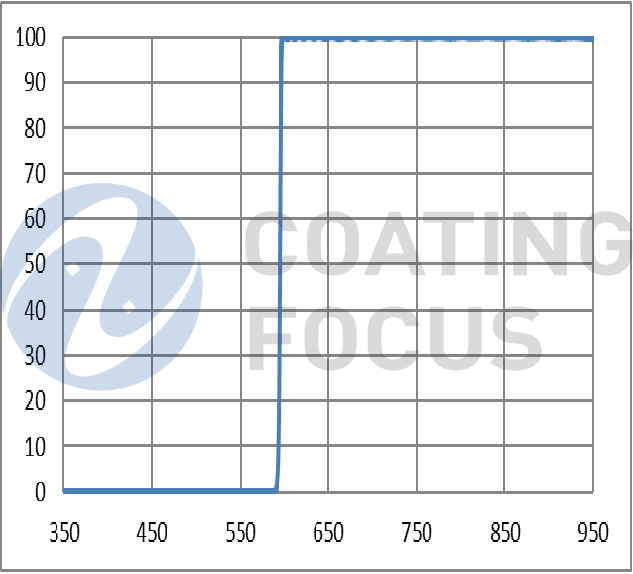

Parameters

Unit

Specifications

Angle of Incident

°

0

Passband

nm

590-950

Passband Average Transmission

%

>= 90%

Passband Absolute Transmission

%

>= 92%

Block Band OD > 4

nm

350~565

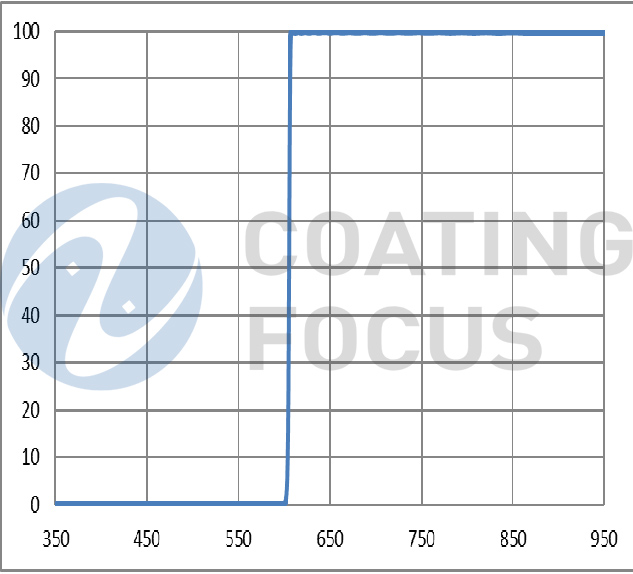

Parameters

Unit

Specifications

Angle of Incident

°

0

Passband

nm

605-950

Passband Average Transmission

%

>= 90%

Passband Absolute Transmission

%

>= 92%

Block Band OD > 4

nm

350~580

Parameters

Unit

Specifications

Angle of Incident

°

0

Passband

nm

615-950

Passband Average Transmission

%

>= 90%

Passband Absolute Transmission

%

>= 92%

Block Band OD > 4

nm

350~590

Parameters

Unit

Specifications

Angle of Incident

°

0

Passband

nm

640-950

Passband Average Transmission

%

>= 90%

Passband Absolute Transmission

%

>= 92%

Block Band OD > 4

nm

350~615

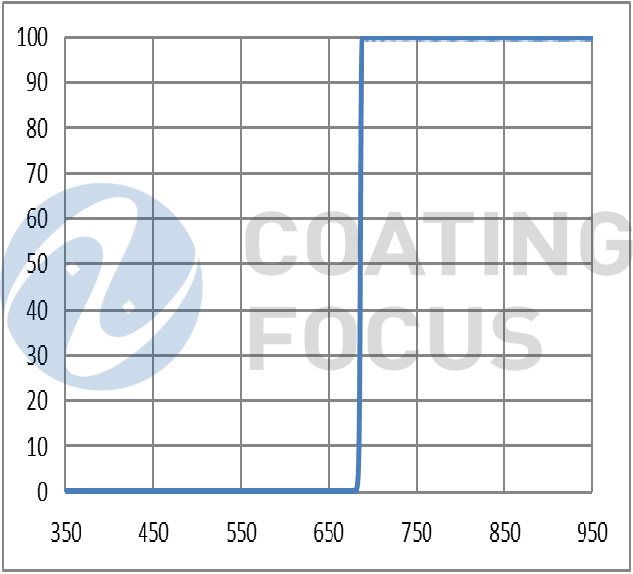

Parameters

Unit

Specifications

Angle of Incident

°

0

Passband

nm

680-1000

Passband Average Transmission

%

>= 90%

Passband Absolute Transmission

%

>= 92%

Block Band OD > 4

nm

350~655

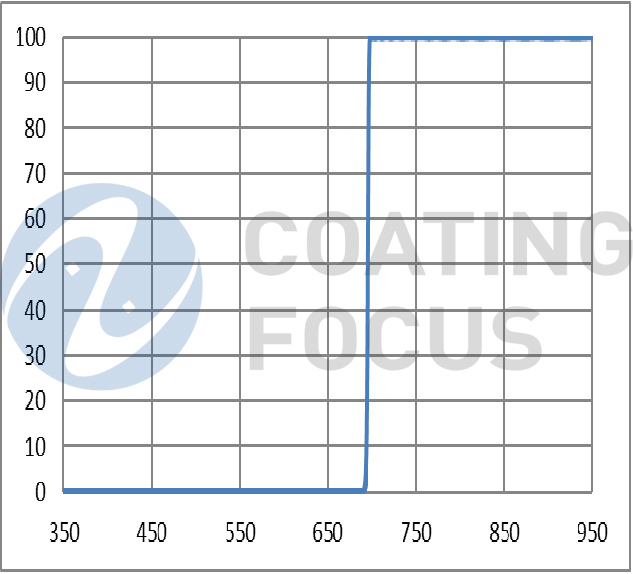

Parameters

Unit

Specifications

Angle of Incident

°

0

Passband

nm

695-950

Passband Average Transmission

%

>= 90%

Passband Absolute Transmission

%

>= 92%

Block Band OD > 4

nm

350~670

Parameters

Unit

Specifications

Angle of Incident

°

0

Passband

nm

705-950

Passband Average Transmission

%

>= 90%

Passband Absolute Transmission

%

>= 92%

Block Band OD > 4

nm

350~680
