COMBO OLT Filter

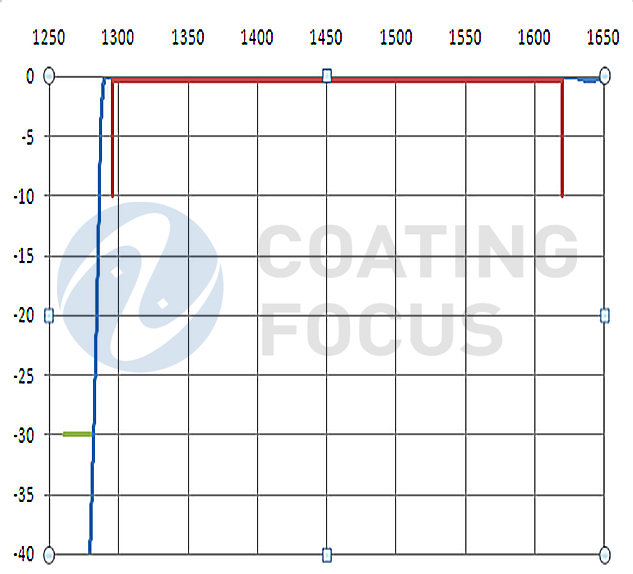

Parameters

Unit

Specifications

Operation Wavelength

nm

1250~1620

Angle of Incident

°

13

Pass Band Width

nm

1295~1620

Stop Band Width

nm

1260~1280

Max IL within PassBand

dB

<0.3

Transmission Isolation

dB

>25

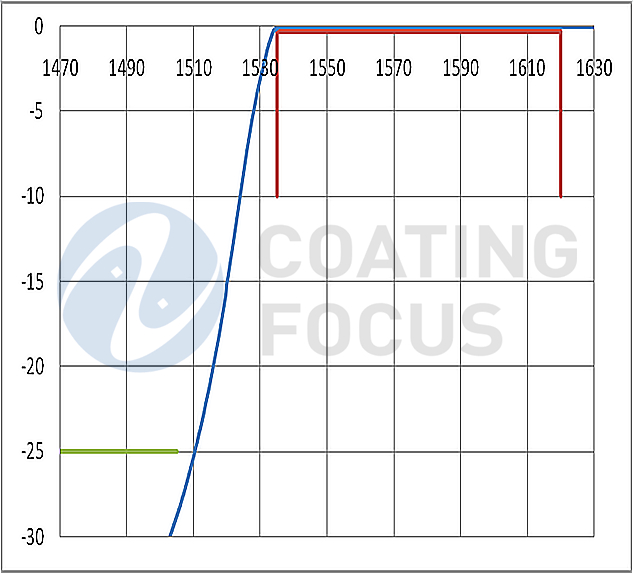

Parameters

Unit

Specifications

Operation Wavelength

nm

1470~1620

Angle of Incident

°

45

Pass Band Width

nm

1555~1620

Stop Band Width

nm

1470~1510

Max IL within PassBand

dB

<0.3

Transmission Isolation

dB

>25

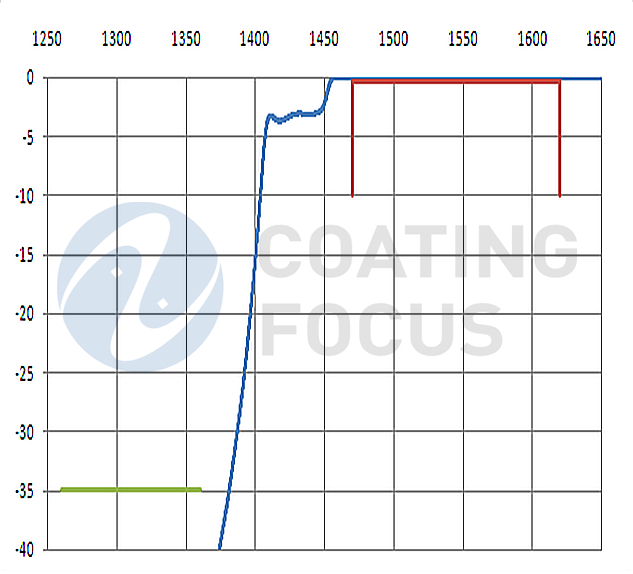

Parameters

Unit

Specifications

Operation Wavelength

nm

1250~1620

Angle of Incident

°

45

Pass Band Width

nm

1470~1620

Stop Band Width

nm

1250~1350

Max IL within PassBand

dB

<0.3

Transmission Isolation

dB

>30

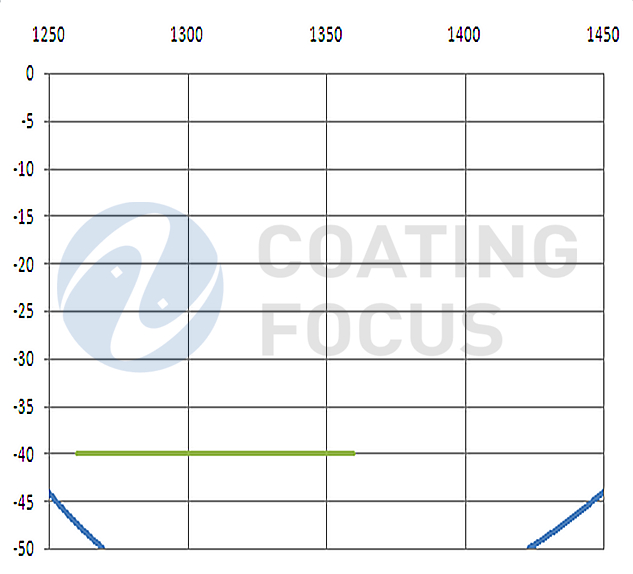

Parameters

Unit

Specifications

Operation Wavelength

nm

1250~1350

Angle of Incident

°

32

Pass Band Width

nm

-

Stop Band Width

nm

1250~1350

Max IL within PassBand

dB

-

Transmission Isolation

dB

>30

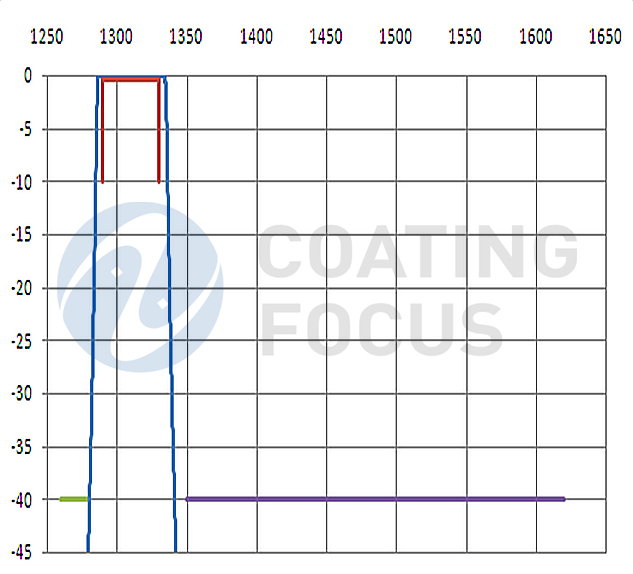

Parameters

Unit

Specifications

Operation Wavelength

nm

1250~1620

Angle of Incident

°

0

Pass Band Width

nm

1290~1330

Stop Band Width

nm

1260~1280

Max IL within PassBand

dB

<0.3

Transmission Isolation

dB

>30

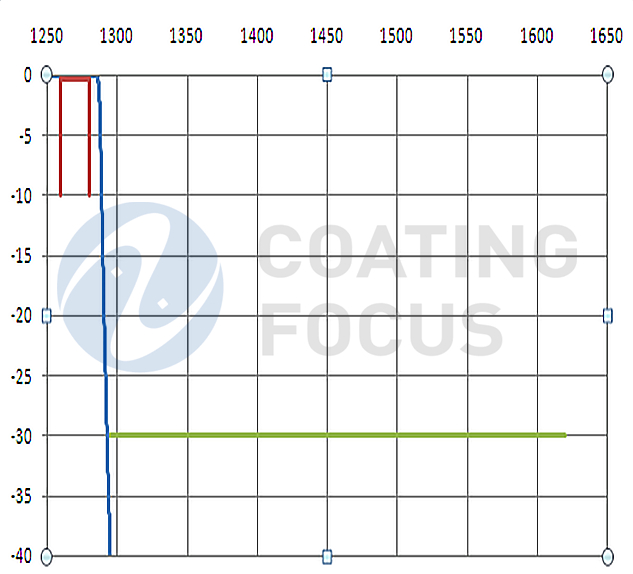

Parameters

Unit

Specifications

Operation Wavelength

nm

1250~1620

Angle of Incident

°

0

Pass Band Width

nm

1260~1280

Stop Band Width

nm

1290~1620

Max IL within PassBand

dB

<0.3

Transmission Isolation

dB

>30
