25G-BiDi Filter

Parameters

Unit

Specifications

Operation Wavelength

nm

1250~1350

Angle of Incident

°

45

Pass Band Width

nm

1250~1285

Stop Band Width

nm

1315~1350

Max IL within PassBand

dB

<0.3

Transmission Isolation

dB

>25

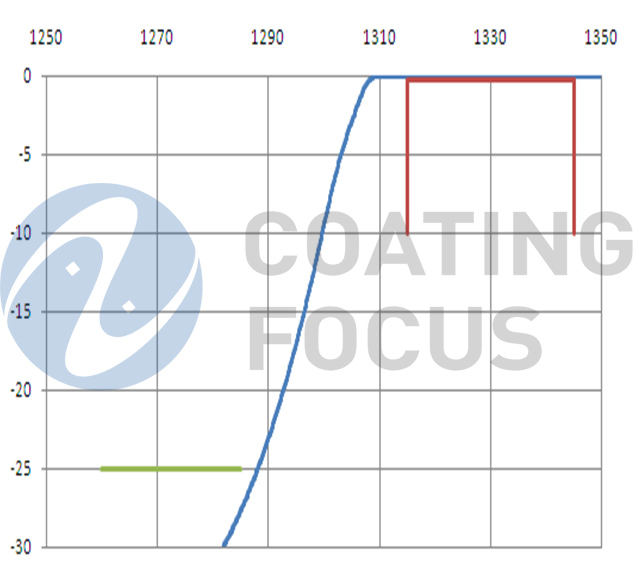

Parameters

Unit

Specifications

Operation Wavelength

nm

1250~1350

Angle of Incident

°

45

Pass Band Width

nm

1315~1350

Stop Band Width

nm

1250~1285

Max IL within PassBand

dB

<0.3

Transmission Isolation

dB

>25

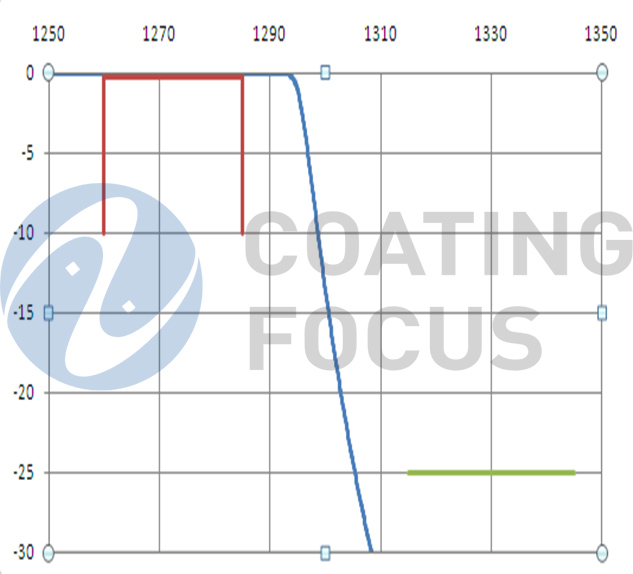

Parameters

Unit

Specifications

Operation Wavelength

nm

1250~1350

Angle of Incident

°

0

Pass Band Width

nm

1250~1285

Stop Band Width

nm

1315~1350

Max IL within PassBand

dB

<0.3

Transmission Isolation

dB

>30

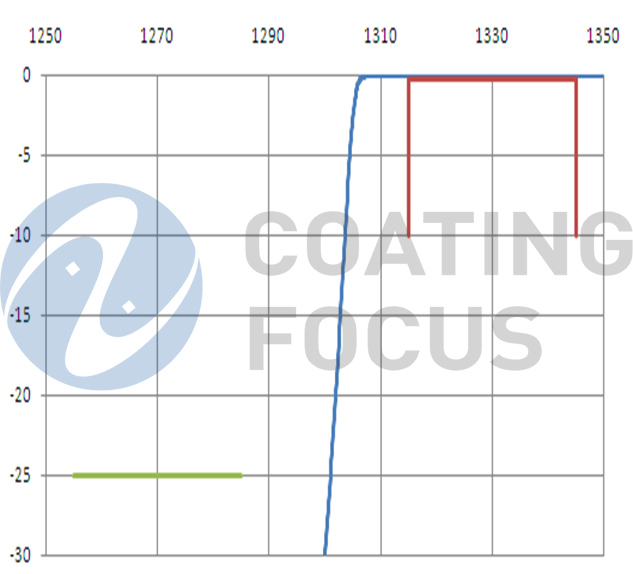

Parameters

Unit

Specifications

Operation Wavelength

nm

1250~1350

Angle of Incident

°

0

Pass Band Width

nm

1315~1350

Stop Band Width

nm

1250~1285

Max IL within PassBand

dB

<0.3

Transmission Isolation

dB

>30

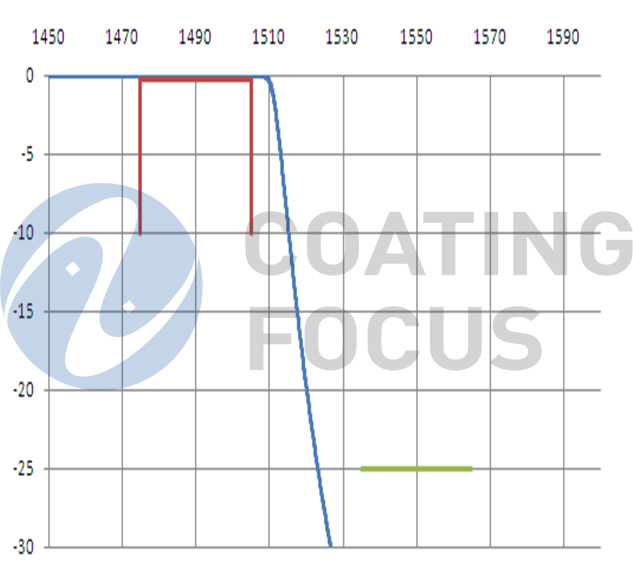

Parameters

Unit

Specifications

Operation Wavelength

nm

1470~1570

Angle of Incident

°

45

Pass Band Width

nm

1475~1505

Stop Band Width

nm

1535~1565

Max IL within PassBand

dB

<0.3

Transmission Isolation

dB

>25

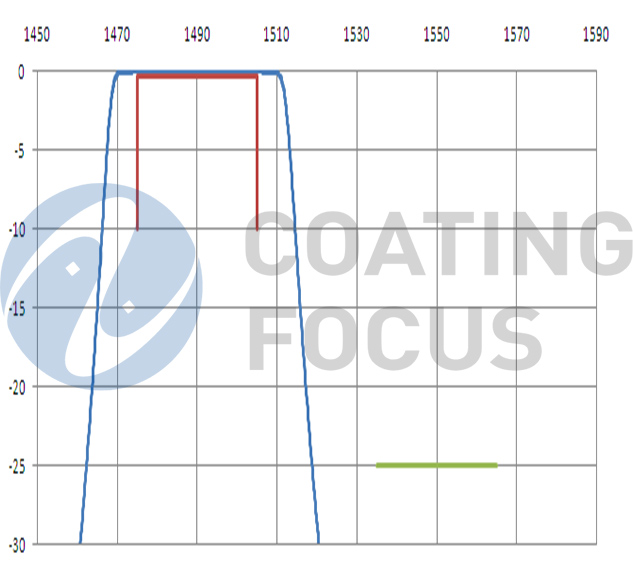

Parameters

Unit

Specifications

Operation Wavelength

nm

1470~1570

Angle of Incident

°

0

Pass Band Width

nm

1480~1500

Stop Band Width

nm

1535~1565

Max IL within PassBand

dB

<0.3

Transmission Isolation

dB

>30

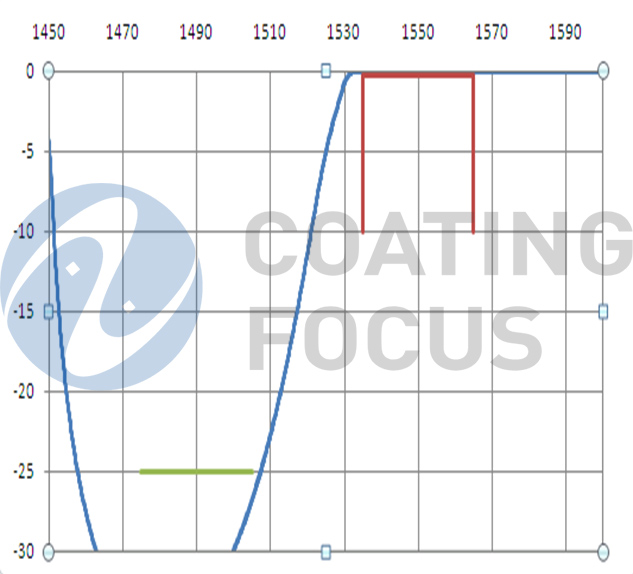

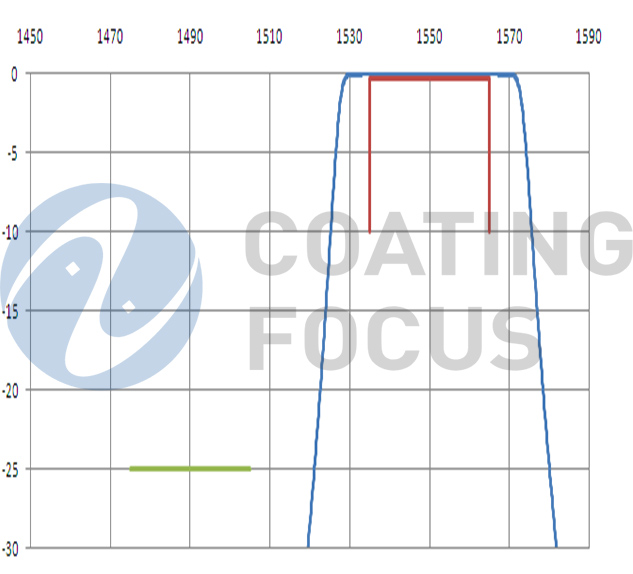

Parameters

Unit

Specifications

Operation Wavelength

nm

1470~1570

Angle of Incident

°

0

Pass Band Width

nm

1535~1565

Stop Band Width

nm

1475~1505

Max IL within PassBand

dB

<0.3

Transmission Isolation

dB

>30
