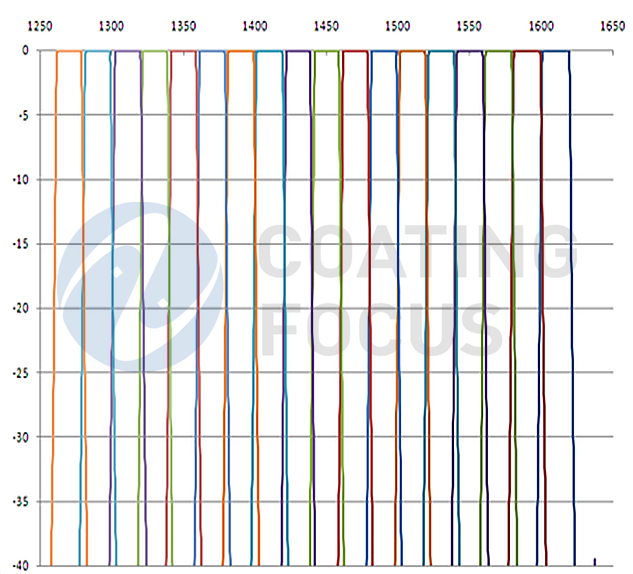

CWDM Filter

Parameters

Unit

Specifications

Operation Wavelength

nm

1260~1620

Angle of Incident

°

1.8

Center Wavelength Tolerance @ -3.0dB

nm

1270,1271~1610,1611 +/-0.5

Pass Band Width @ -0.3dB

nm

>=15

Stop Band Width

nm

<=25

Max IL within PassBand

dB

<=0.3

Max IL within StopBand

dB

<=0.2

Ripple within PassBand

dB

<=0.2

Ripple within StopBand

dB

<=0.15

Polarization Dependent Loss within PassBand

dB

<=0.1

Transmission Isolation within Adjacent Channel

dB

>=30

Transmission Isolation within Not-Adjacent Channel

dB

>=45

Reflection Isolation

dB

>=15.0

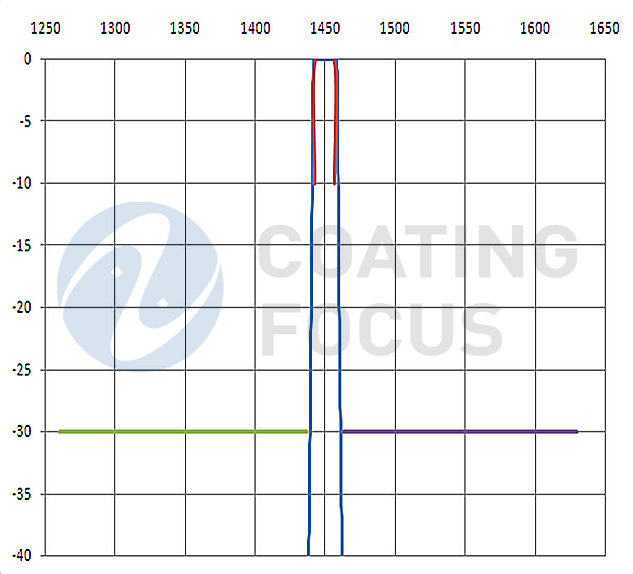

Parameters

Unit

Specifications

Operation Wavelength

nm

1260~1620

Angle of Incident

°

1.8

Center Wavelength Tolerance @ -3.0dB

nm

1270,1271~1610,1611 +/-0.5

Pass Band Width @ -0.3dB

nm

>=15

Stop Band Width

nm

<=25

Max IL within PassBand

dB

<=0.3

Max IL within StopBand

dB

<=0.2

Ripple within PassBand

dB

<=0.2

Ripple within StopBand

dB

<=0.15

Polarization Dependent Loss within PassBand

dB

<=0.1

Transmission Isolation within Adjacent Channel

dB

>=30

Transmission Isolation within Not-Adjacent Channel

dB

>=45

Reflection Isolation

dB

>=15.0

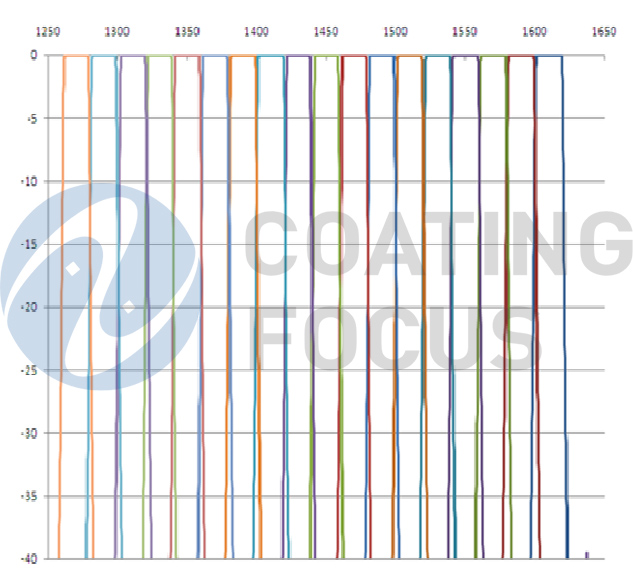

Parameters

Unit

Specifications

Operation Wavelength

nm

1260~1620

Angle of Incident

°

13.5

Center Wavelength Tolerance @ -3.0dB

nm

1270,1271~1610,1611 +/-0.5

Pass Band Width @ -0.3dB

nm

>=15

Stop Band Width

nm

<=25

Max IL within PassBand

dB

<=0.3

Max IL within StopBand

dB

<=0.2

Ripple within PassBand

dB

<=0.2

Ripple within StopBand

dB

<=0.15

Polarization Dependent Loss within PassBand

dB

<=0.1

Transmission Isolation within Adjacent Channel

dB

>=30

Transmission Isolation within Not-Adjacent Channel

dB

>=45

Reflection Isolation

dB

>=15.0

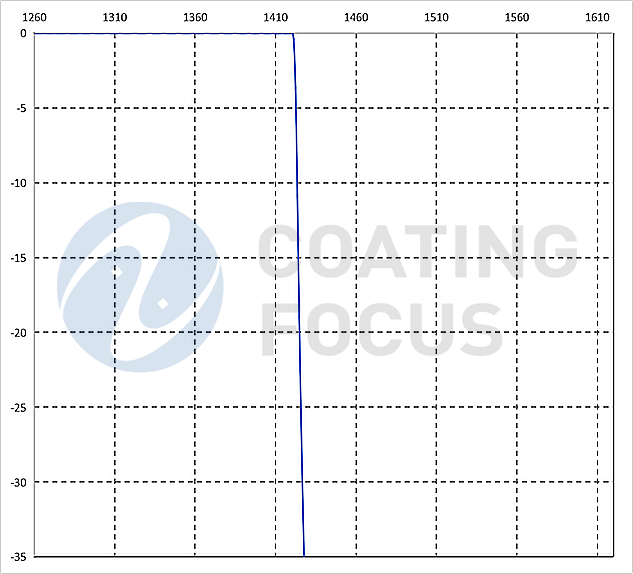

Parameters

Unit

Specifications

Operation Wavelength

nm

1260~1620

Angle of Incident

°

1.8

Pass Band

nm

1260~1417(1418)

Stop Band

nm

1423(1424)~1620

Max IL within PassBand

dB

<=0.3

Max IL within StopBand

dB

<=0.2

Ripple within PassBand

dB

<=0.2

Ripple within StopBand

dB

<=0.15

Polarization Dependent Loss within PassBand

dB

<=0.1

Transmission Isolation

dB

>=15

Reflection Isolation

dB

>=13

Parameters

Unit

Specifications

Operation Wavelength

nm

1260~1620

Angle of Incident

°

13.5

Center Wavelength Tolerance @ -3.0dB

nm

1270,1271~1610,1611 +/-0.5

Pass Band Width @ -0.3dB

nm

>=15

Stop Band Width

nm

<=25

Max IL within PassBand

dB

<=0.3

Max IL within StopBand

dB

<=0.2

Ripple within PassBand

dB

<=0.2

Ripple within StopBand

dB

<=0.15

Polarization Dependent Loss within PassBand

dB

<=0.1

Transmission Isolation within Adjacent Channel

dB

>=30

Transmission Isolation within Not-Adjacent Channel

dB

>=45

Reflection Isolation

dB

>=15.0
