PAM4 Filter

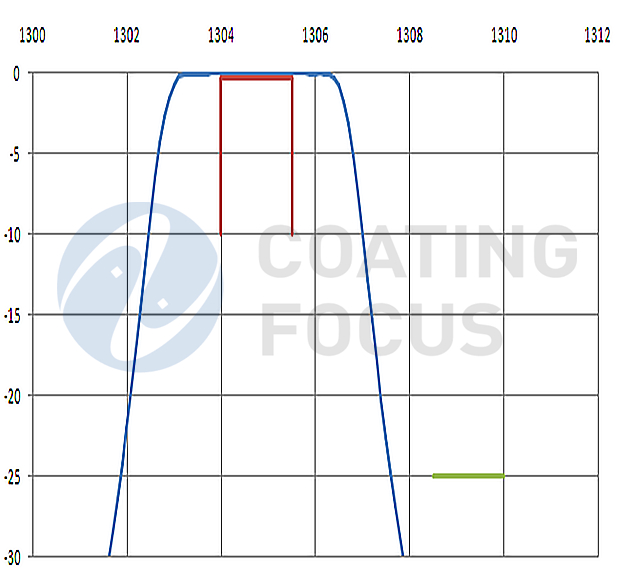

Parameters

Unit

Specifications

Operation Wavelength

nm

1300~1320

Angle of Incident

°

13

Pass Band Width

nm

1304~1305.5

Stop Band Width

nm

1308.5~1310

Max IL within PassBand

dB

<0.3

Transmission Isolation

dB

>25

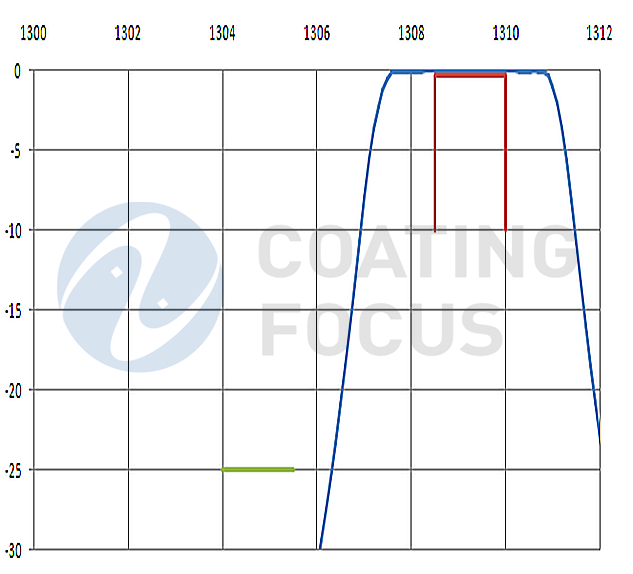

Parameters

Unit

Specifications

Operation Wavelength

nm

1300~1320

Angle of Incident

°

13

Pass Band Width

nm

1308.5~1310

Stop Band Width

nm

1304~1305.5

Max IL within PassBand

dB

<0.3

Transmission Isolation

dB

>25

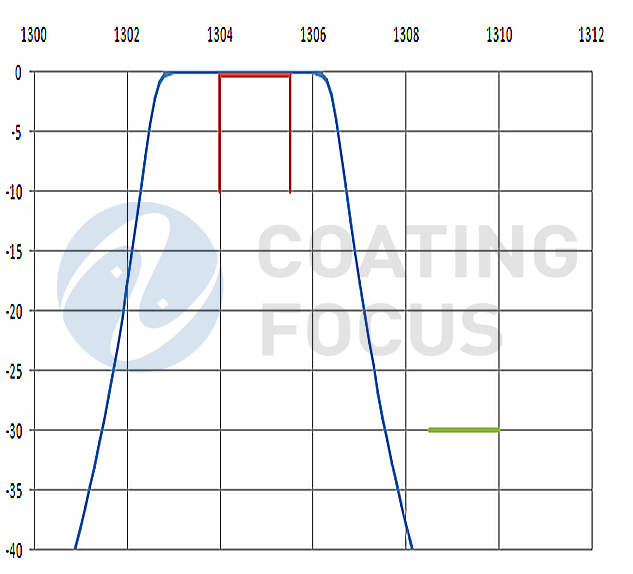

Parameters

Unit

Specifications

Operation Wavelength

nm

1300~1320

Angle of Incident

°

0

Pass Band Width

nm

1304~1305.5

Stop Band Width

nm

1308.5~1310

Max IL within PassBand

dB

<0.3

Transmission Isolation

dB

>30

Parameters

Unit

Specifications

Operation Wavelength

nm

1300~1320

Angle of Incident

°

0

Pass Band Width

nm

1308.5~1310

Stop Band Width

nm

1304~1305.5

Max IL within PassBand

dB

<0.3

Transmission Isolation

dB

>30
